Self Piercing Bus bar Riveting Machine For Busway Profile Production

Equipment data on self-piercing riveting machine

Function introduction

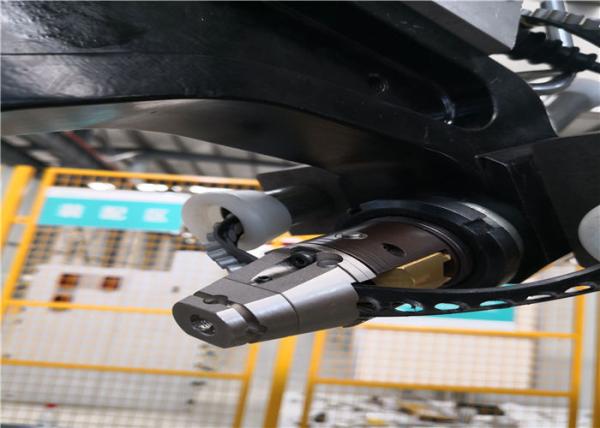

Self-piercing riveting machine, also called riveting gun, is applied for busbar assembly. It can be customized according to different busbar housing. Before riveting, operator does not need to drill the hole. Machine can realize self-piercing riveting by its pressure and rivet structure. Working principal is as below.

Features:

1, The supercharger drives the split cylinder as the riveting power source, which has the characteristics of low noise, low energy consumption and no pollution.
2, The servo system controls the rivet clamp and the left and right movement, to realize the two sides are simultaneously riveted by the forward movement and the stop action of the roller.
3, The discharge line has a lateral removal function.
4, The busbar casing is no more than 3 meter length.
5, Feeding line has servo clamping mechanism, the most front-end is 3m roller table

Suzhou Kiande Electric Co.,Ltd. is a comprehensive scientific enterprise specialized in intelligent production and data analysis for electricity manufacturing field. Company’s head office is located in Suzhou(Paradise on earth) and manufacturing center is in Zhen Jiang(Chinese electricity island).It covers R&D dept, design dept., production dept., sales dept. and after-service dept. which improves to provide better programs for production efficiency, quality, cost and data.

Specialized in manufacturing and customizing busbar production machines including manualproduction line,semi-automatic production line, automatic production line,manual inspection ma-chine, automatic inspection machine,automatic packing machine, automatic mylar film forming machine, automatic mylar film slitting machine,tape winding machine, automatic mylar wrapping ma-chine, profile processing machine, busbar conductor multifunctional processing machine , digital busbar punching machine, joint connection bar processing center, welding robot, elbow busbar produc-tion machine, NC position fixture and other machines related to busbar processing.
